SecureSwitch^®  micro-mirror fiber optic switches   Reflect to Connect>™



SecureSwitch^®  Fiber Optic A/OFF/C Switch Revision C

    Is based on the Revision B SecureSwitch^® product, but further optimized for "kill switch" application involving two networks of different security classifications. Includes manual and remote control/status interfaces and a switched AC power outlet.

•  SecureSwitch^® Common Criteria Certification for switching between networks of different security classifications
•   TEMPEST Evaluated
•  Optically switches the multimode fiber connection - supports all protocols, wavelengths, data rates and formats.
•  Common Criteria Security Target
•  Automatically cycles power to attached Codec's or other devices when the connection state is changed.
•  Provides an OFF position to kill & isolate all data paths from each other.

Part #'s	Description

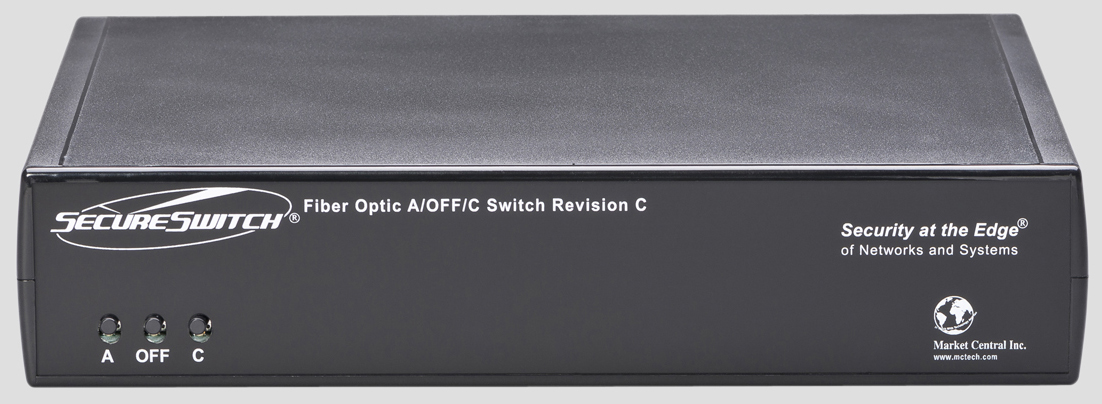

5101191	SecureSwitch® Fiber Optic A/OFF/C Switch Revision C (tabletop)
5101191-1U	SecureSwitch® Fiber Optic A/OFF/C Switch Revision C (1U tabletop)

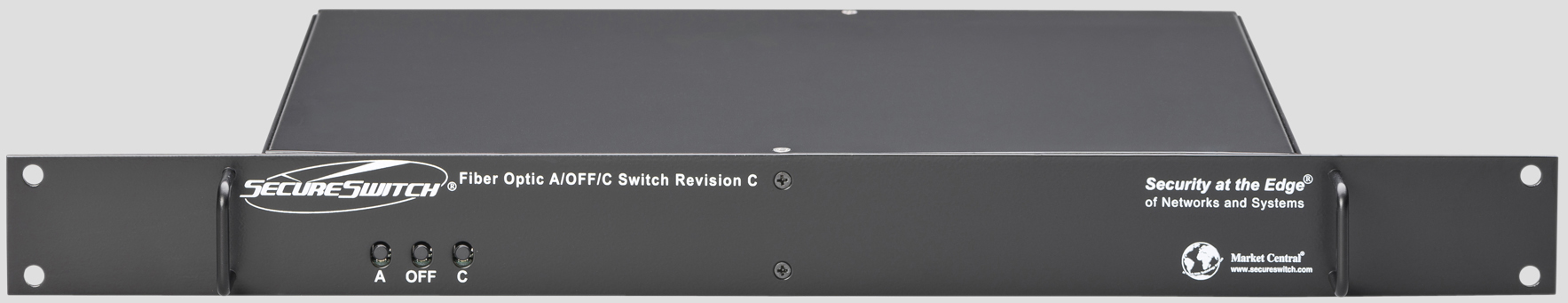

5101192	SecureSwitch® Fiber Optic A/OFF/C Switch Revision C (rackmount)
5101191-60	Tabletop model with extended 60 second A/C power delay
5101191-1U-60	1U Tabletop model with extended 60 second A/C power delay
5101192-60	Rackmount model with extended 60 second A/C power delay

---

 Section 508 compliance information:
