Data DeadBolt^® Single Pair Ethernet (SPE) 2:1, 3:1 & 4:1 switches

These manual 2:1, 3:1 and 4:1 switches are designed for reliable, long-term service. They use a unique design and ultra-high reliability toggle switch mechanisms to ensure accurate communications of high speed Single Pair Ethernet signals between the common port and the selected port.

2-port, 3-port and 4-port Desktop and Din Rail models available
Supports 10/100/1000 Base-T1 (802.3cg, 802.3bw, 802.3bp)
Supports PoDL - power over data line 802.3bu
Connect the selected port to the common port or air-gap isolate all ports from the common port
Applications include IIoT industrial networks, automotive test equipment, edge computing and transportation

Part #'s	Description

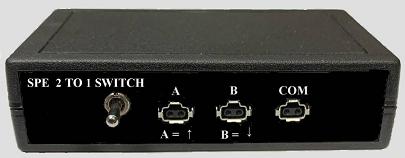

6001455	SPE A/B Switch - Desktop
6001453	SPE A/B Switch - DIN-Rail
6001454	SPE A/B/C - Desktop

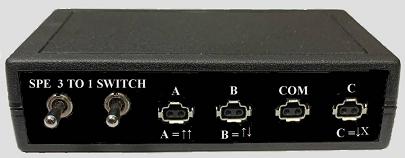

6001452	SPE A/B/C - DIN-Rail
6001450	SPE A/B/C/D - Desktop
6001451	SPE A/B/C/D - DIN-Rail Switch
