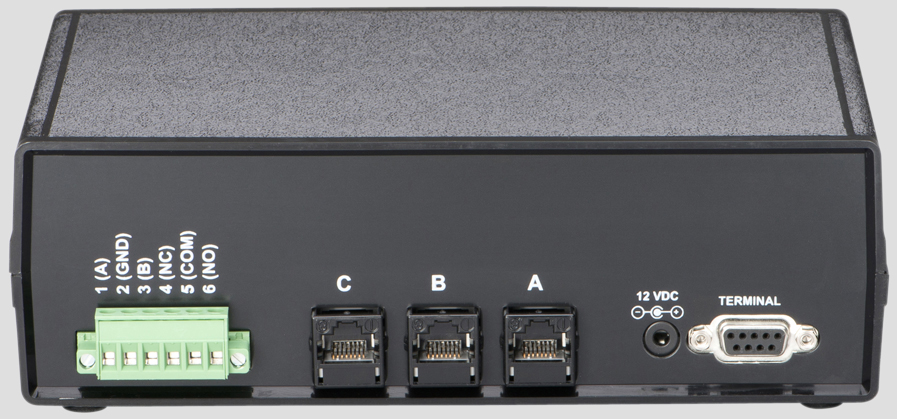

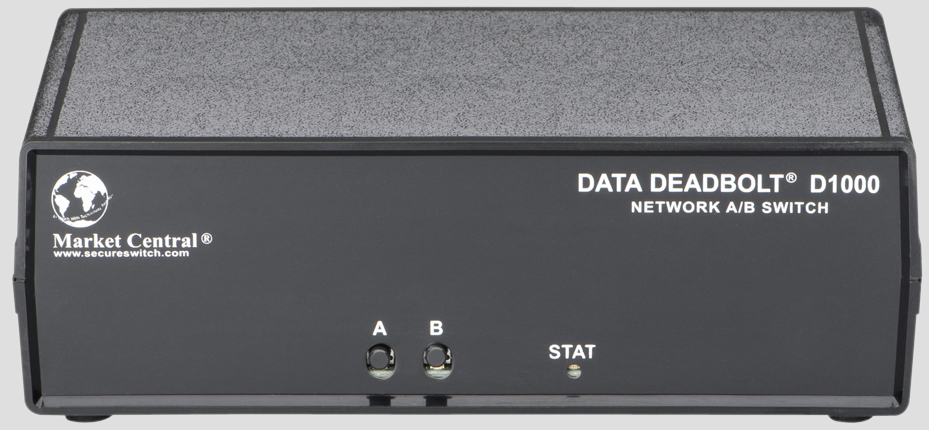

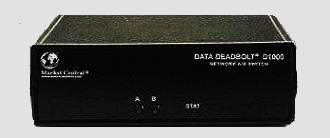

    D1000 intelligent switch front view   D1000 intelligent switch rear view

Data DeadBolt® D1000 Desktop Switches

     The Market Central D1000 A/B Layer 1 Switch connects port A or port B to a Common(C) port through latching or non-latching relays or fiber optic switch mechanisms. Latching units maintain the connection state with or without power. Non-Latching units will switch to port A with power loss and remain in A when power is restored.
     All Models allow manual control of the connection state through pushbuttons on the front, and include a 6 position terminal block on the rear for remote status and control via external dry contact closure. The Serial RS232 models have a DB9 serial port to control and monitor the connection state. The Ethernet models have a 10base-T port on the front which allows remote control and monitoring using a web browser, telnet, SNMP or SwitchCenter GUI application.

  •  DB9, Cat6, singlemode fiber and multimode fiber models
  •  Monitor & control access to networks remotely
  •  Cat-6 and Fiber models support any data format, protocol or speeds up to 10 Gbps
  •  Automate the backup of individual connections based on network path failure
  • new product image  Cat6 switch cards also support HDBaseT connections including Power Over HDBaseT (POH) up to 100W.
              - Switch one HDBaseT source between multiple receivers/displays or one receiver/display between multiple sources.
              - Use as an HDBaseT air gap switch for secure access control for controlling POH displays or as an HDBaseT link selector switch
                for failover and sharing applications.
